Intel® LGA 1200 socket: Ready for 11th and 10th gen Intel® Core™ processors
Enhanced power solution: 10+1 DrMOS power stages, six-layer PCB, 8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
Next-gen connectivity: PCIe® 4.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
Dimensiones
1 × 23 × 30 cm
Formato de forma
ATX
Socket
LGA1200
Compatibilidad de CPUs
11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Slots para memorias
4 DIMM DDR4
Velocidad de memorias máximo
5133MHz
Salidas de video
1 x DisplayPort 1.4 // 1 x HDMITM 1.4 / 2.0
Ranuras de expansión
1 x PCIe 4.0/3.0 x16 slot // 1 x PCIe 3.0 x16 slot (supports x4 mode) // 2 x PCIe 3.0 x1 slots
Almacenamiento
3 x M.2 slots and 4 x SATA 6Gb/s ports // M.2_1 slot (Key M), type 2242/2260/2280/22110 — M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) — M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
V-M.2 slot only (Key E, CNVi & PCIe)
USB traseros
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) // 1 x USB 3.2 Gen 2 port (1 x Type-A) // 2 x USB 3.2 Gen 1 ports (2 x Type-A) // 2 x USB 2.0 ports (2 x Type-A)
USB Frontales
1 x USB 3.2 Gen 1 connector (supports USB Type-C®) // 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports // 2 x USB 2.0 headers support additional 4 USB 2.0 ports*
Audio
Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC – Supports up to 24-Bit/192 kHz playback
Puertos E/S traseros

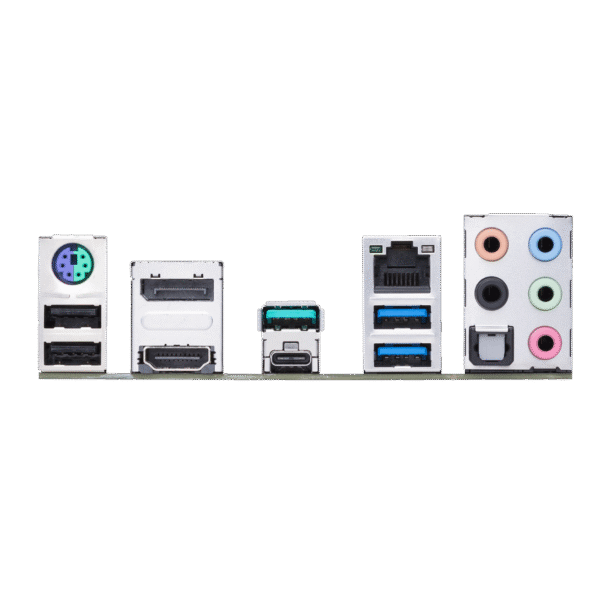

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) // 1 x USB 3.2 Gen 2 port (1 x Type-A) // 2 x USB 3.2 Gen 1 ports (2 x Type-A) // 2 x USB 2.0 ports (2 x Type-A) // 1 x DisplayPort // 1 x HDMI™ port // 1 x V-M.2 slot (Key E) // 1 x Realtek 2.5Gb Ethernet port // 5 x Audio jacks // 1x Optical S/PDIF out port // 1 x PS/2 Keyboard/Mouse combo port
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Marca
ASUS
ASUSTeK Computer, Inc., conocida simplemente como ASUS, es una corporación multinacional de hardware, electrónica y robótica con sede en Taipéi, Taiwán, en el Distrito de Beitou.
